Merge pull request #1558 from koyaan/doc_preview_mode

Update Preview Mode Documentation ( Issue #1539 )

Resources/doc/reference/preview_mode.rst

@@ -1,24 +1,61 @@
 Preview Mode
 ============

-A preview step can be enabled for an admin entity by overriding the public property
+Preview Mode is an optional view of an object before it is persisted or updated.
+
+The preview step can be enabled for an admin entity by overriding the public property
 $supportsPreviewMode and setting it to true.

+.. code-block:: php
+
+    <?php // MyAdmin.php
+
+    class MyAdmin extends Admin
+    {
+        public $supportsPreviewMode = true;
+
+        /* ... */
+    }
+

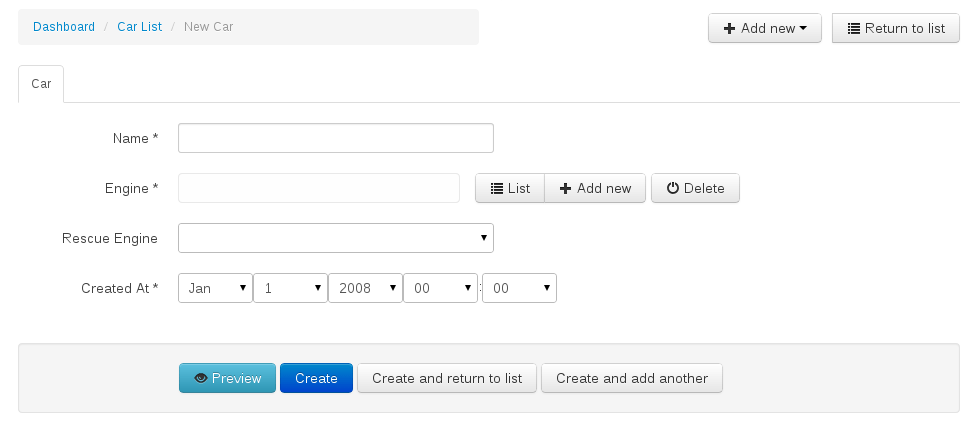

 This will show a new button during create/edit mode named preview.

+.. figure:: ../images/preview_mode_button.png
+   :align: center
+   :alt: Preview Button
+
 While in preview mode two buttons will be shown to approve or decline persistance of the
 entity. Decline will send you back to the edit mode with all your changes unpersisted but
 still in the form so no data is lost and the entity can be further adjusted.
 Accepting the preview will store the entity as if the preview step was never there.

+.. figure:: ../images/preview_show.png
+   :align: center
+   :alt: Preview Button
+
+
+Simulating front-end rendering
+----------------------------
+
 Preview can be used to render how the object would look like in your front-end environment.
+
 However by default it uses a template similar to the one of the show action and works with
 the fields configured to be shown in the show view.

 Overriding the preview template (SonataAdminBundle:CRUD:preview.html.twig) can be done either
-globally through the template configuration for the key 'preview' or per admin entity by
-overriding the getTemplate($name) and returning the appropriate template when the key
-matches 'preview'.
+globally through the template configuration for the key 'preview':
+
+.. code-block:: yaml
+
+    # app/config/config.yml
+
+        sonata_admin:
+            templates:
+                preview:  AcmeDemoBundle:CRUD:preview.html.twig
+
+
+Or per admin entity by overriding the getTemplate($name) and returning the appropriate template when the key
+matches 'preview':
+

 .. code-block:: php

@@ -40,25 +77,26 @@ In either way the template should be extending your own layout, injecting the fo
 and finally overriding the action buttons to show the approve/decline buttons like the
 default preview.html.twig.

-The entity is passed to the view in a variable called object. If your original view expects
+The entity is passed to the view in a variable called **object**. If your original view expects
 a different object you can just set your own variables prior to calling parent().

-Keep in mind that the whole edit form will now appear in your view.
-Hiding the fieldset tags with css (display:none) will be enough to only show the buttons
-(which still have to be styled according to your wishes) and create a nice preview-workflow.
-
 .. code-block:: jinja

+    {# 'AcmeDemoBundle:CRUD:preview.html.twig #}
+
     {% extends 'AcmeDemoBundle::layout.html.twig' %}

     {% use 'SonataAdminBundle:CRUD:base_edit_form.html.twig' with form as parentForm %}

-    {% block templateContent %}
-        {% set article = object %}
+    {% block templateContent %}     {# a block in 'AcmeDemoBundle::layout.html.twig' expecting article #}
+        {% set article = object %}

         {{ parent() }}

-        {{ block('parentForm') }}
+        <div class="sonata-preview-form">
+            {{ block('parentForm') }}
+        </div>
+
     {% endblock %}

     {% block formactions %}
@@ -66,3 +104,24 @@ Hiding the fieldset tags with css (display:none) will be enough to only show the
         <input class="btn btn-danger" type="submit" name="btn_preview_decline" value="{{ 'btn_preview_decline'|trans({}, 'SonataAdminBundle') }}"/>
     {% endblock %}

+Keep in mind that the whole edit form will now appear in your view.
+Hiding the fieldset tags with css (display:none) will be enough to only show the buttons
+(which still have to be styled according to your wishes) and create a nice preview-workflow:
+
+.. code-block:: css
+
+    div.sonata-preview-form fieldset {
+        display: none;
+    };
+
+Or if you prefer less:
+
+.. code-block:: less
+
+    div.sonata-preview-form {
+      fieldset {
+        display: none;
+      };
+    }
+
+
